Open Source APM Feature Comparison: SkyWalking vs Databuff

SkyWalking · Open Source APM · Databuff · Distributed Tracing · APM

> Summary: When evaluating open-source APM, feature checklists often look alike — the real gap is troubleshooting paths and onboarding cost. This article skips architecture pitches and goes straight into the official SkyWalking and Databuff Demos, comparing service monitoring, distributed tracing, topology, alerts, and AI Q&A with live screenshots. After the comparison tables, you'll have a clear view of who to keep and who to try.

Comparison environment: demo.databuff.ai and demo.skywalking.apache.org[1][2]; SkyWalking UI is in Chinese (Simplified). Each chapter includes dual-product screenshots and a feature comparison table, with a selection summary at the end.

No concept dumping here — we open both products' real feature pages side by side in the Demo: from single-service monitoring drill-down, to Trace list and Span detail comparison, through topology and alerts, plus Databuff's unique AI Q&A — differences are in the screenshots, one chapter per capability.

1Service Monitoring

Drill from the service list into single-service monitoring detail: metric trends, instance/API rankings, and service dependencies.

1 SkyWalking · General Service → rating Service Detail

SkyWalking Demo · Chinese UI

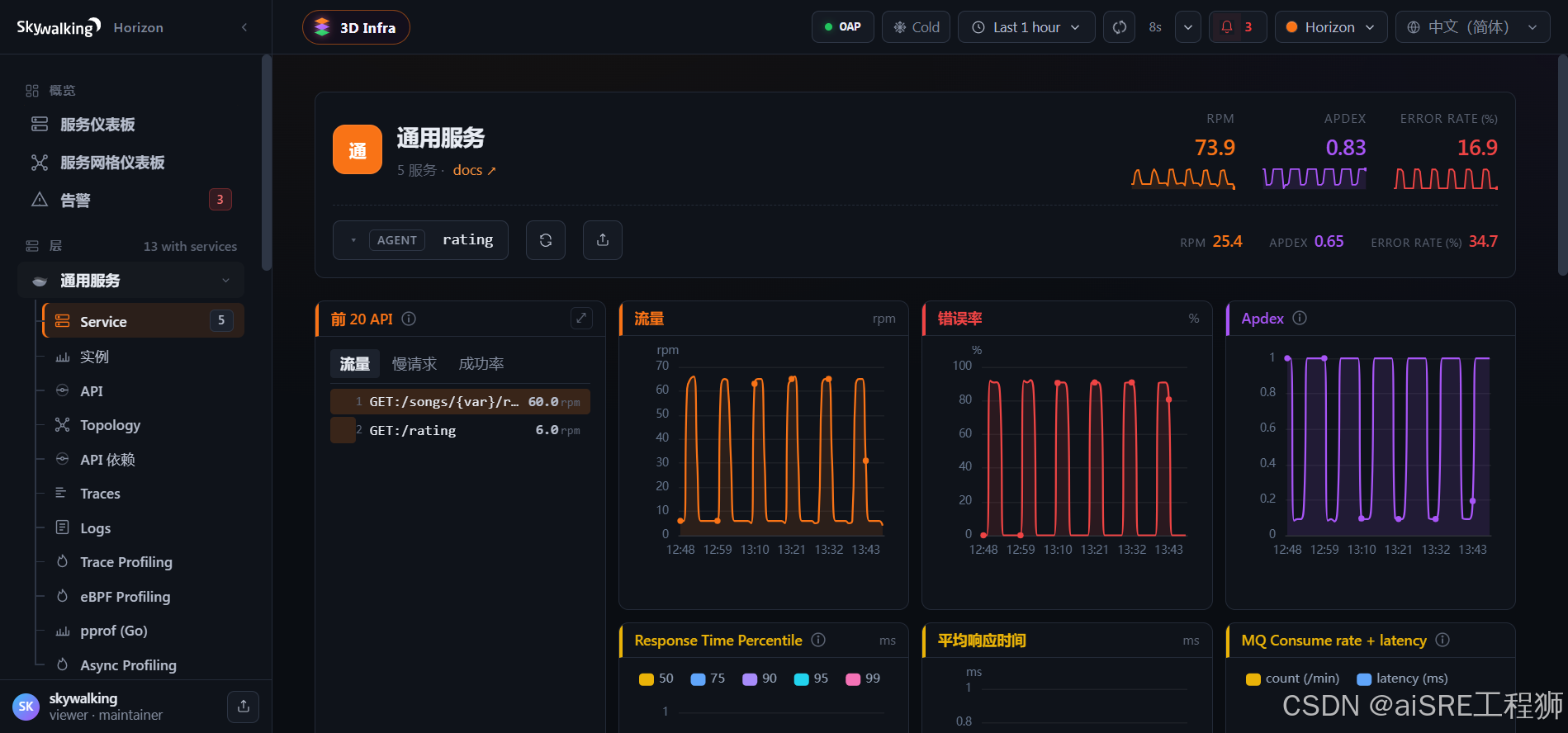

Figure 1-1 · rating service selected: RPM / Apdex / error rate, top 20 APIs, traffic and response-time percentiles, instance ranking[2]

After selecting a specific service (e.g. rating in the Demo) under General Service, SkyWalking shows a full application performance monitoring dashboard: Top APIs, traffic/error-rate/Apdex time series, response-time percentiles, instance load ranking — with further drill-down to instances, endpoints, Trace Profiling / eBPF, and more. Deep feature set for teams already invested in SkyWalking agents.

Service / instance / API / Trace multi-level menu linkage
Rich Profiling (Trace / eBPF / pprof) entry points
Fine-grained metrics, but deeper menu hierarchy

2 Databuff · Application Performance → service-a Detail

Databuff Demo

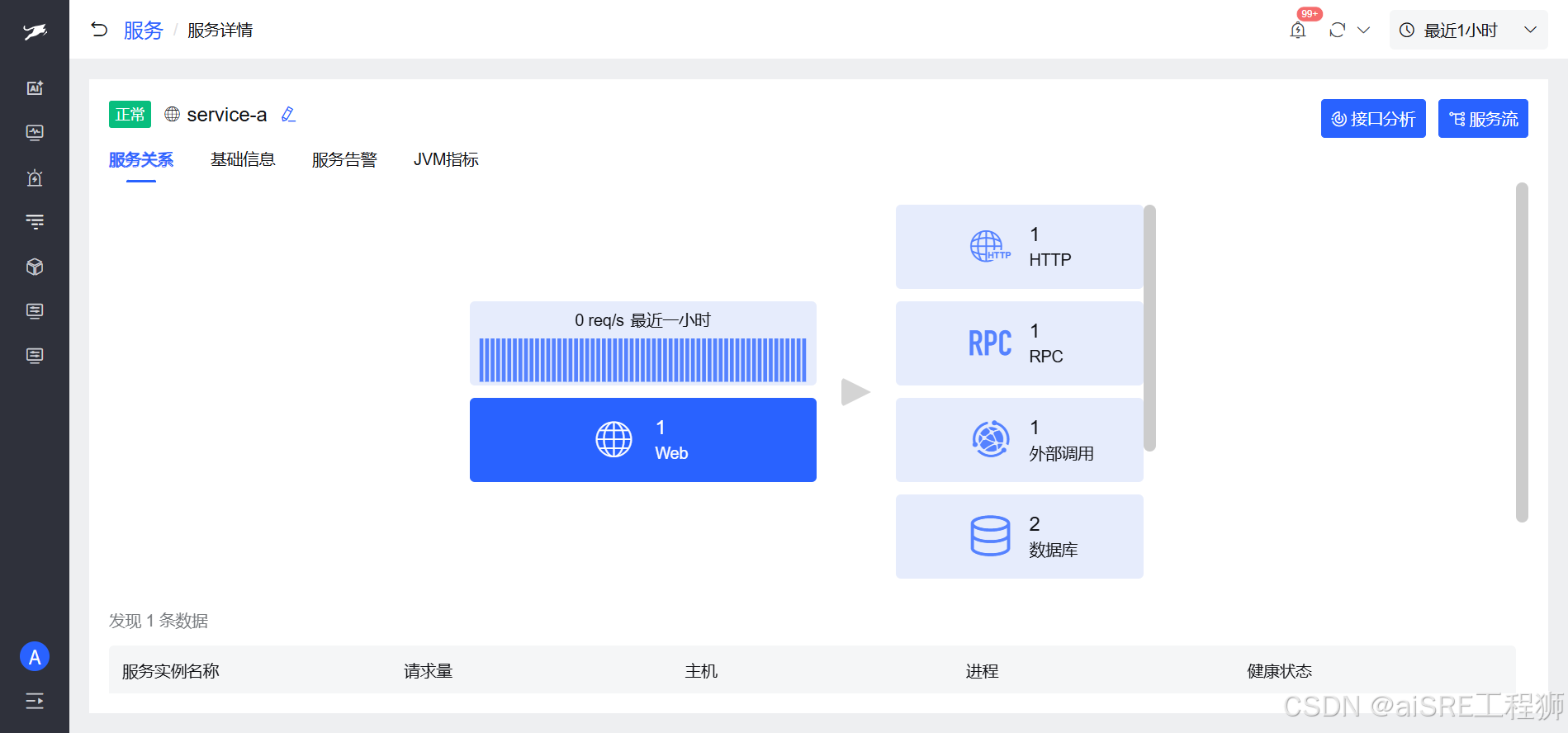

Figure 1-2 · service-a detail: health status, service relationship graph (Web → HTTP/RPC/DB/external calls), instance list, shortcuts to API analysis and service flow[1]

Databuff opens single-service detail from the service list with a service relationship graph + instance table by default: Web entry, downstream HTTP/RPC, MySQL/Redis dependencies at a glance, plus "API Analysis" and "Service Flow" shortcuts. Data comes from OTLP — no SkyWalking proprietary probe protocol.

Service relationship visualization on the detail landing page — shorter troubleshooting path
Unified OTLP ingestion, language/framework agnostic
Same page links alerts, JVM metrics, and other tabs

§1 Comparison summary: SkyWalking offers richer per-service metric charts and stronger Profiling; Databuff puts dependency relationships and service instances on the detail landing page — a more intuitive path for OTel teams from list → relationship graph → Trace. If you're already on OTel or planning a unified Collector, Databuff service detail needs zero extra probe protocols.

§1 Feature comparison · Service monitoring

Dimension	SkyWalking	Databuff	Databuff advantage
Detail page focus	Top APIs, traffic/Apdex/error-rate time series, instance/API ranking	Service relationship graph + instance table on landing page, health at a glance	See full dependency picture on entry, fewer page switches
Drill-down path	Instance → API → Trace → Profiling multi-level menus	API analysis / service flow / JVM / alerts tabs on one page	Common capabilities aggregated — shorter troubleshooting chain
Dependency view	Jump to Topology / API dependency modules	Built-in Web→HTTP/RPC/DB/external relationship graph on detail page	Dependencies and metrics on one screen — faster impact assessment
Data ingestion	SkyWalking agents primary; OTLP needs extra config	OTLP 4317/4318 unified ingestion; point Exporter at Ingest	Zero proprietary agents for OTel teams, lower migration cost
Onboarding	Deep feature set, deeper menu hierarchy	Relationship graph landing + native Chinese UI, Demo out of the box	Newcomers build "service→dependency→Trace" mental model faster

◆ ◆ ◆

2Distributed Tracing

Two screenshots per product: Trace list search entry + single Trace detail (Span tree / waterfall).

3 SkyWalking · Distributed Tracing

SkyWalking Demo · Chinese UI

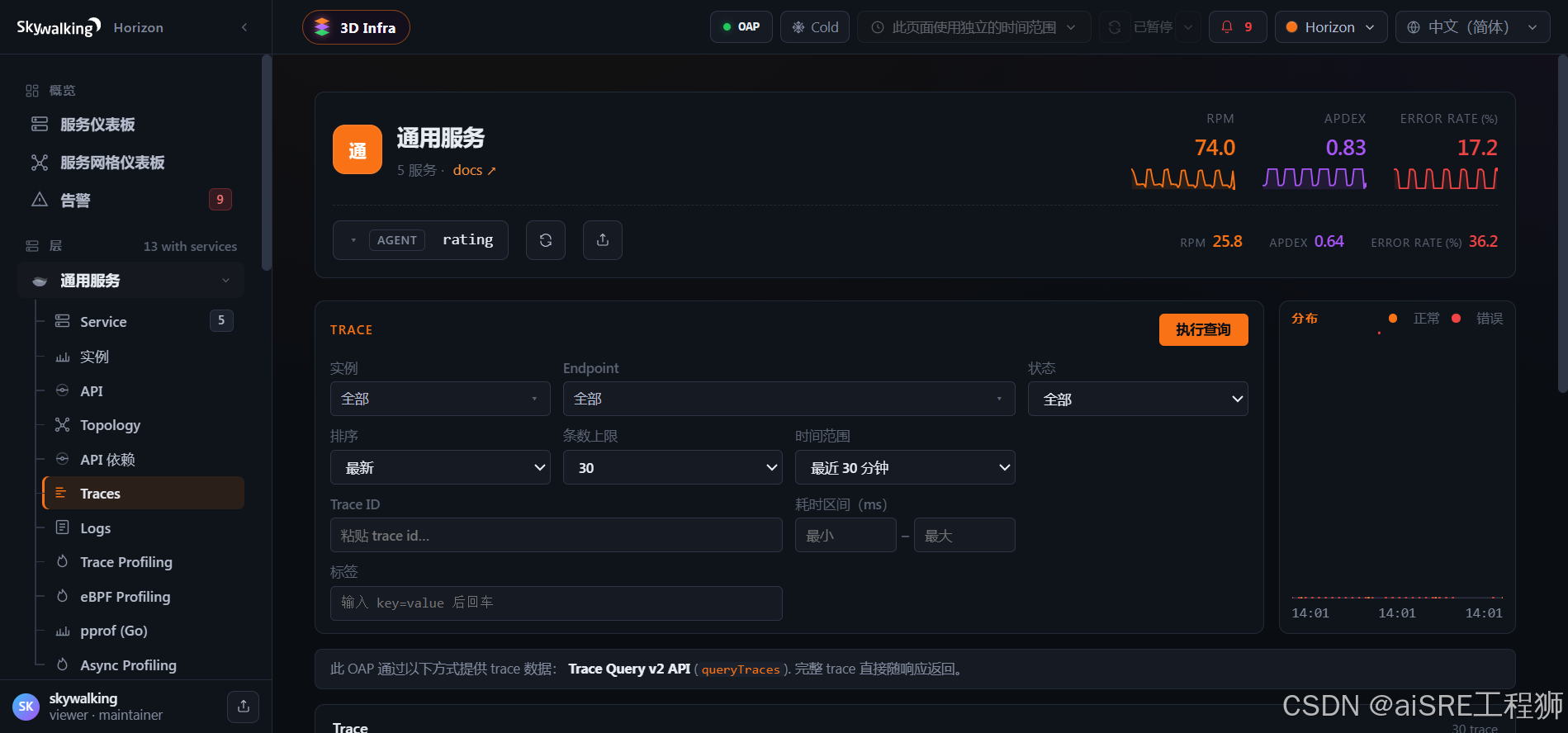

Figure 2-1 · Traces list: instance/endpoint/status filters, distribution scatter plot (success/error), Trace list after query[2]

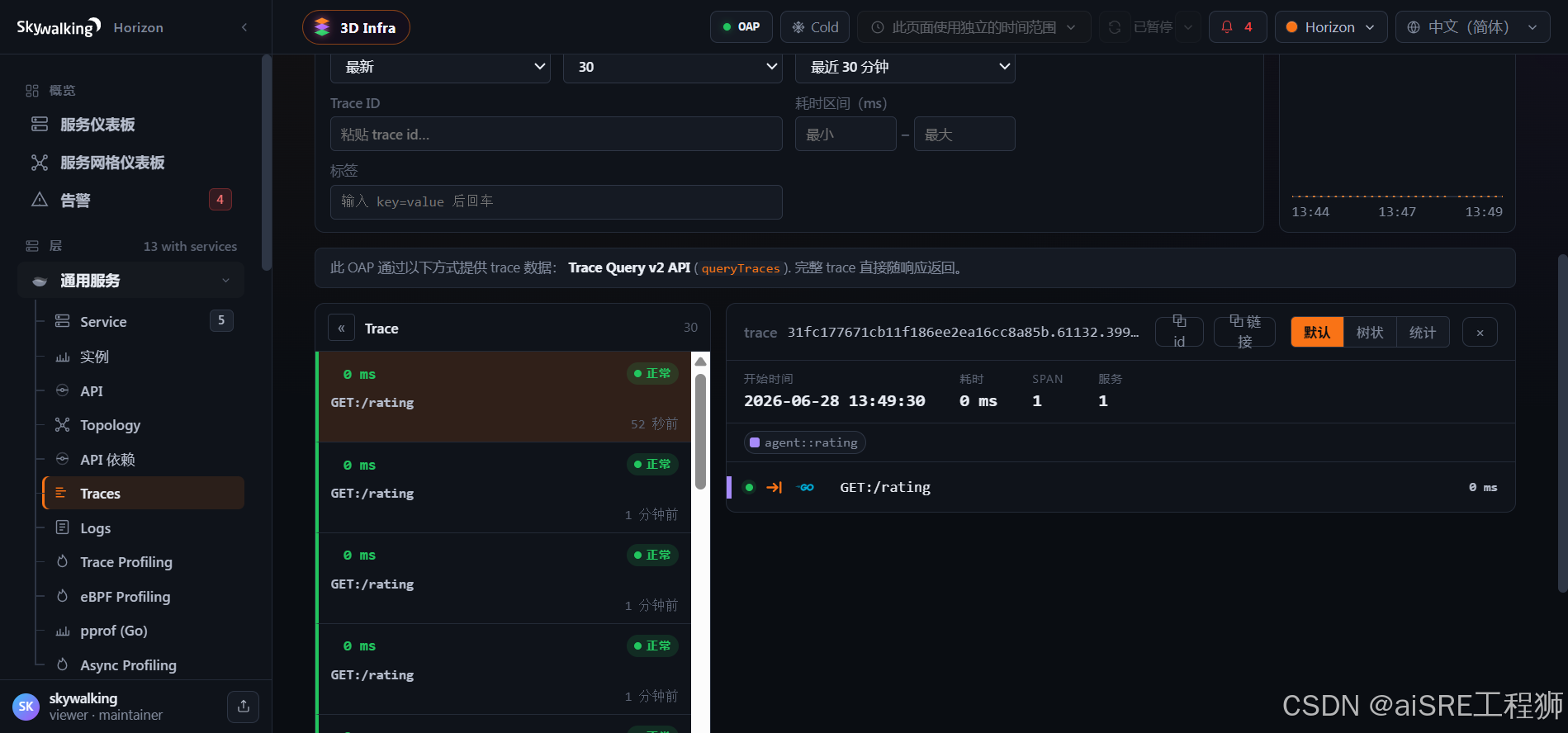

Figure 2-2 · After clicking a Trace: TraceID, duration, Span tree (default/tree/statistics views), expandable Tags and Logs[2]

SkyWalking Trace supports multi-dimensional filters and a Distribution scatter plot; clicking a list row shows the Span tree and Tags. A mature distributed tracing solution for long-term troubleshooting in complex microservices.

4 Databuff · Distributed Tracing

Databuff Demo

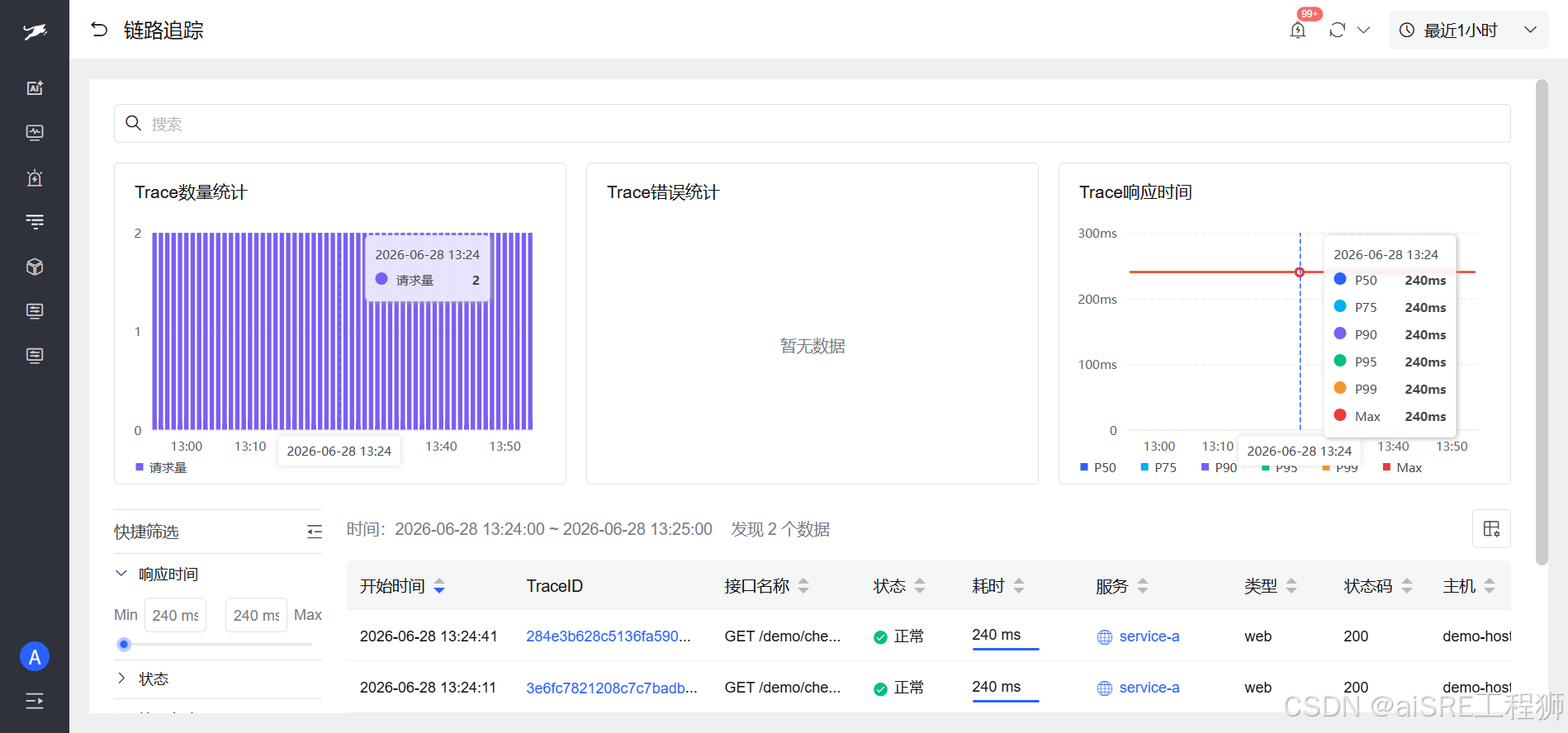

Figure 2-3 · Trace list after chart time-point click: TraceID, API, duration, service, status code, left-side quick filters[1]

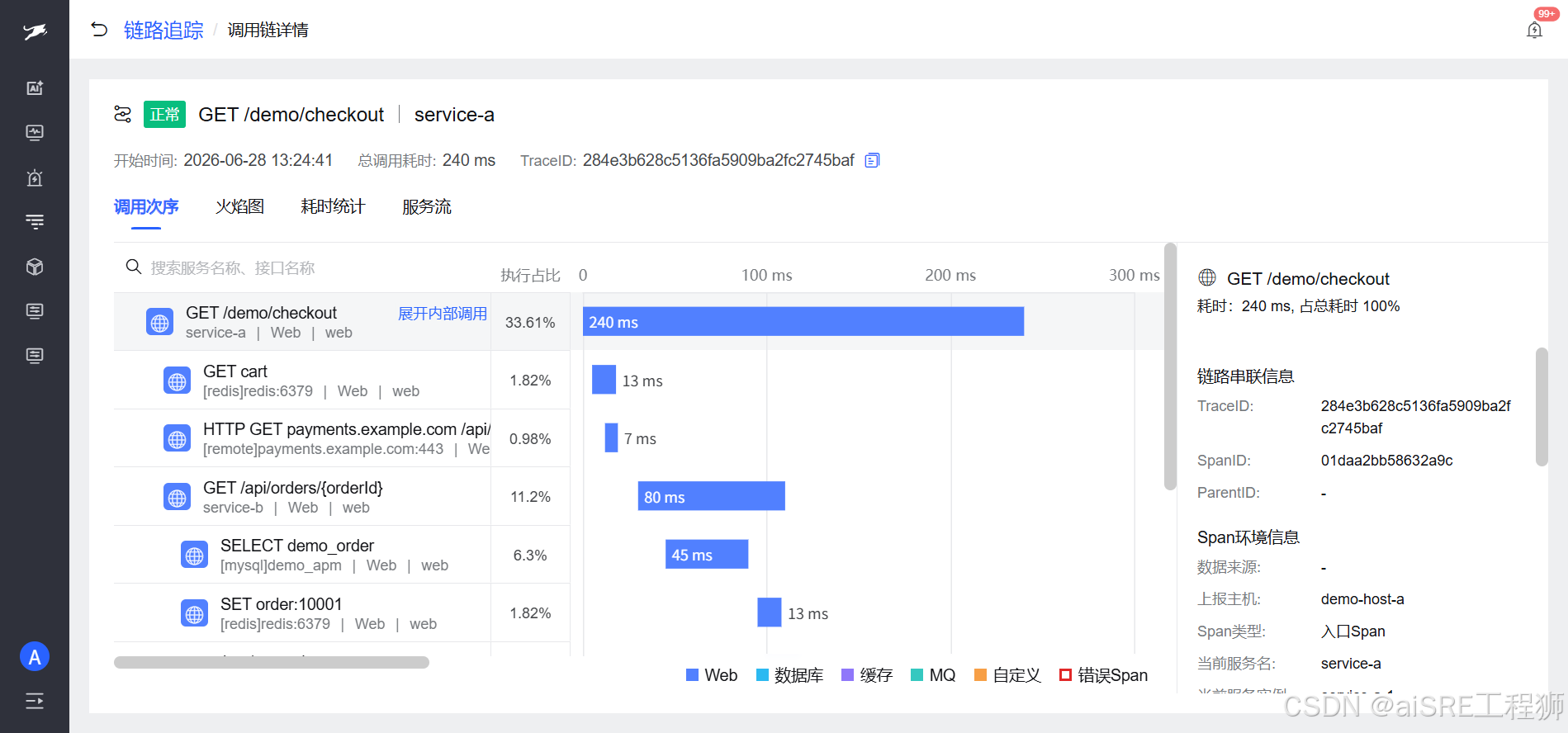

Figure 2-4 · Call chain detail: GET /demo/checkout waterfall, Redis/MySQL/remote calls/service-b full-chain Spans with execution share[1]

Databuff tracing flows distribution chart → list → waterfall seamlessly; Spans are color-coded by Web/DB/cache/MQ, with TraceID/SpanID and environment info on the right. Shares OTLP-ingested data with topology, service detail, and AI Q&A.

§2 Comparison summary: Both meet production-grade Trace search and drill-down. SkyWalking has stronger filter dimensions and Profiling linkage; Databuff's waterfall distinguishes middleware Span types more clearly, and Trace shares the OTLP pipeline with metrics/topology/AI — no second Trace format to maintain during migration.

§2 Feature comparison · Distributed tracing

Dimension	SkyWalking	Databuff	Databuff advantage
Trace list entry	Instance/endpoint/status/tag filters + Distribution scatter	Chart point-select → list, chart and Trace on one screen	See trends before single-Trace lookup — more intuitive slow-request pinpointing
List fields	Endpoint, duration, TraceID, success/error status	TraceID, API name / status code / host, service, duration	More on-call-readable fields, less guessing Endpoint meaning
Detail view	Span tree (default/tree/statistics), expandable Tags and Logs	Waterfall + Web/DB/cache/MQ coloring + execution share	Middleware time contribution visible at a glance — faster root cause
Search capability	Trace ID, duration range, tag key=value — rich dimensions	Left-side quick filters (response time/status/service/API)	Common filters out of the box — no tag expressions required
Protocol & data	Segment native or OTLP, separate pipeline config	OTLP sole entry, same source as topology/metrics/AI Q&A	No second Trace format during dual-write or migration

◆ ◆ ◆

3Service Topology

Visualize service dependencies and middleware calls to quickly scope incident impact.

5 SkyWalking · Topology

SkyWalking Demo · Chinese UI

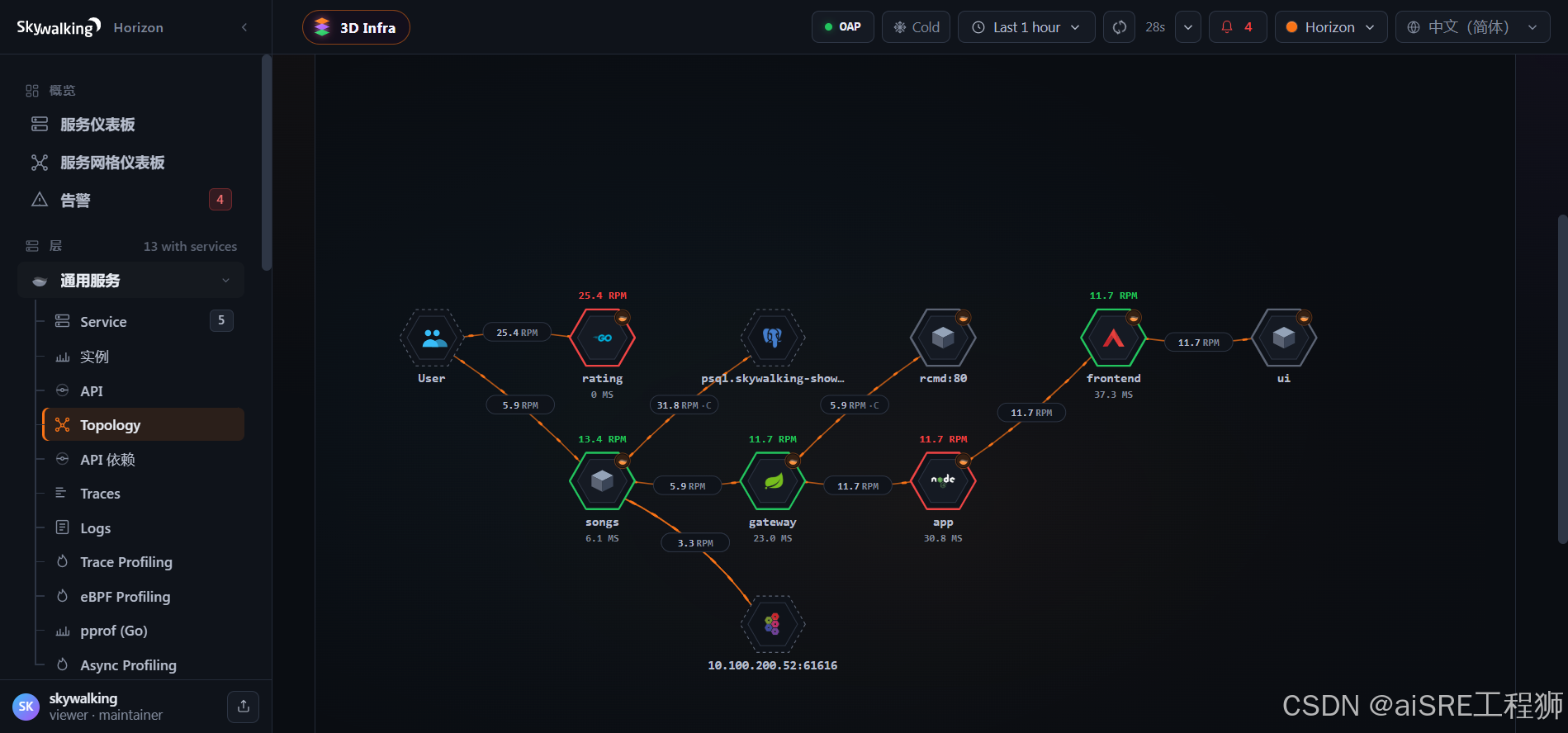

Figure 3-1 · Topology: rating / gateway / app / frontend nodes, RPM and latency on edges, Go/Spring/Node tech stack on nodes[2]

SkyWalking topology aggregates call edges by service; nodes show tech-stack icons with RPM/latency — the familiar "war map" for the community, linkable to alerts and Trace modules.

6 Databuff · Global Topology

Databuff Demo

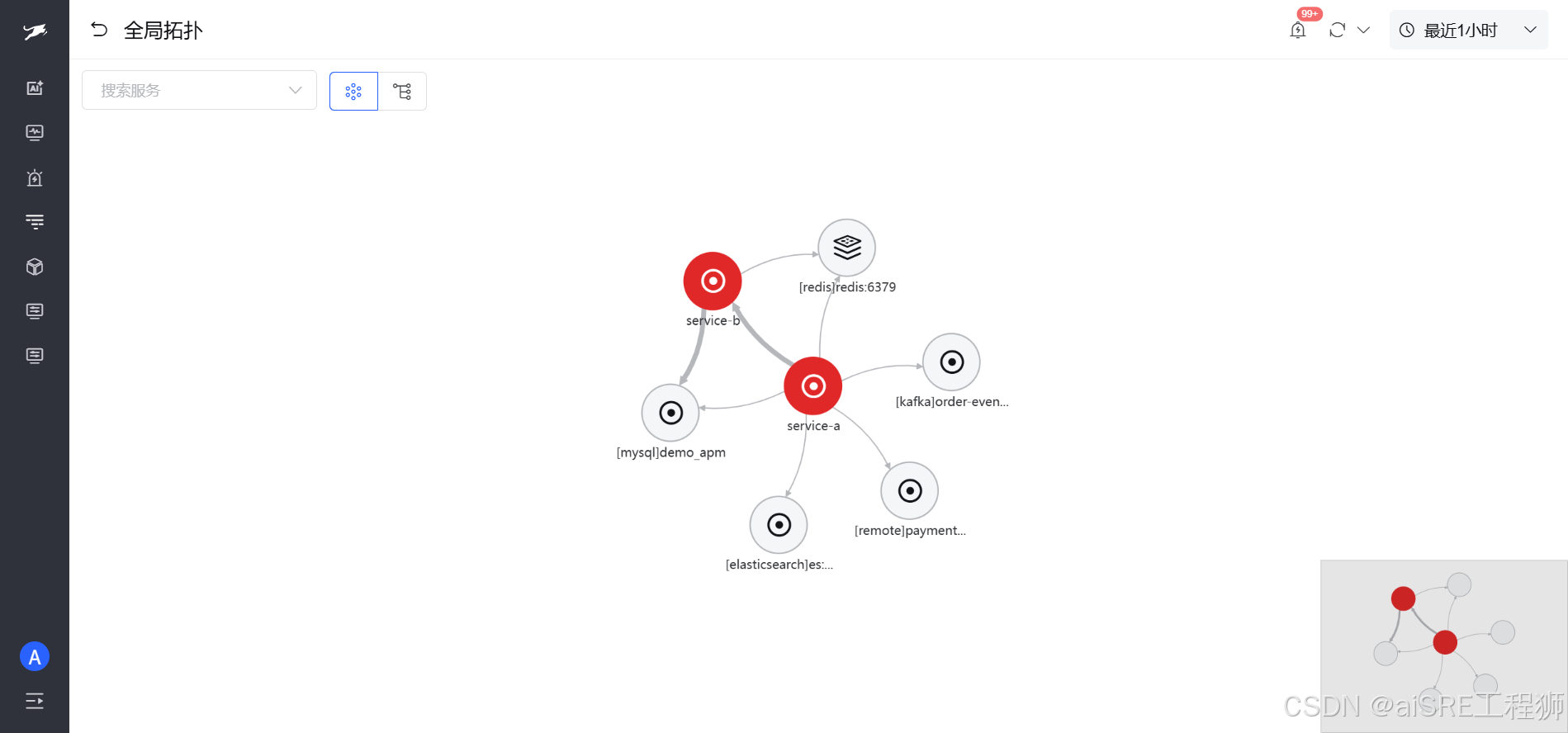

Figure 3-2 · Global topology: service-a/b with Redis, Kafka, MySQL, ES, remote payment middleware dependencies[1]

Databuff derives topology from OTLP Traces automatically; middleware labeled as [redis]/[mysql]/[kafka], nodes drill down to service detail. Easy to run in parallel with OTel Collector or other OTel backends to verify dependencies match.

§3 Comparison summary: Both have mature topology. SkyWalking annotates edges with real-time RPM/latency more finely; Databuff middleware naming aligns with OTel semantics — lower cost to validate during migration.

§3 Feature comparison · Service topology

Dimension	SkyWalking	Databuff	Databuff advantage
Node presentation	Service nodes + tech-stack icons (Go/Spring/Node, etc.)	Services + [redis]/[mysql]/[kafka] semantic middleware nodes	Middleware type readable, aligned with OTel resource attributes
Edge metrics	RPM, latency annotated on call edges in real time	Dependency arrows + node health color (abnormal services highlighted)	Faulty nodes visible at a glance — no need to read edge numbers first
Drill-down linkage	Click node → Service / Trace / alerts	Click node → service detail and Trace directly	Shorter topology→root-cause Span path
Data source	SkyWalking Segment aggregation	OTLP Trace auto-derived, consistent with Collector semantics	Same semantics as OTel ecosystem — simple parallel validation
Migration validation	Parallel OTel backend needs conversion or dual-write	Parallel validation against OTel stack on same workload	Low-cost topology consistency check during SkyWalking migration

◆ ◆ ◆

4Alerting Comparison

Alert rules, event lists, and timelines — critical for on-call and migration periods.

7 SkyWalking · Alert Center

SkyWalking Demo · Chinese UI

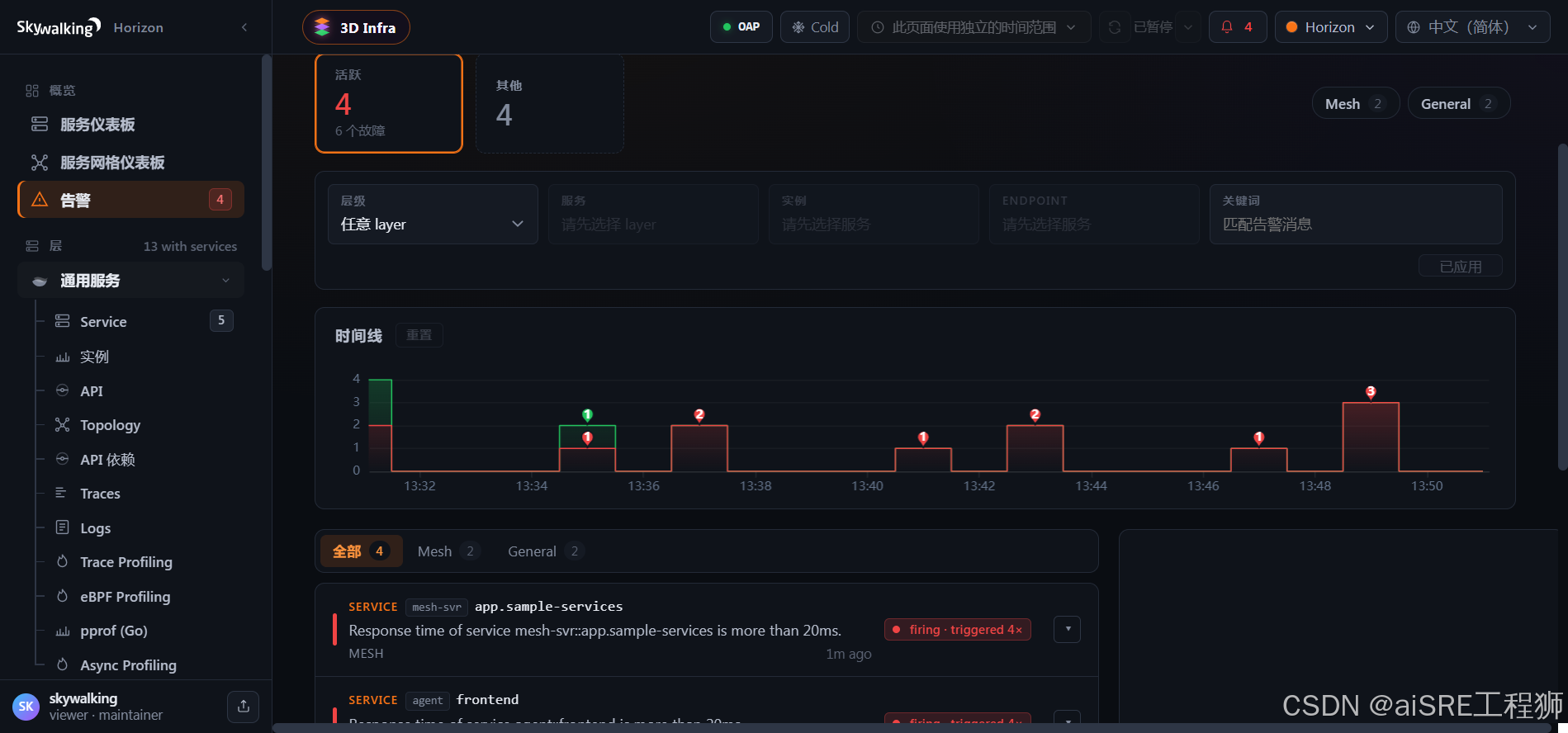

Figure 4-1 · Alerts: active/other stats, layer/service/instance filters, Timeline, Mesh/General category tabs[2]

SkyWalking alerts offer Active/Other categories, Layer/Service/Instance multi-dimensional filters and a Timeline; messages include SLA, response-time thresholds, etc. — for teams needing fine-grained alert policies and long-term rule history.

8 Databuff · Alert List

Databuff Demo

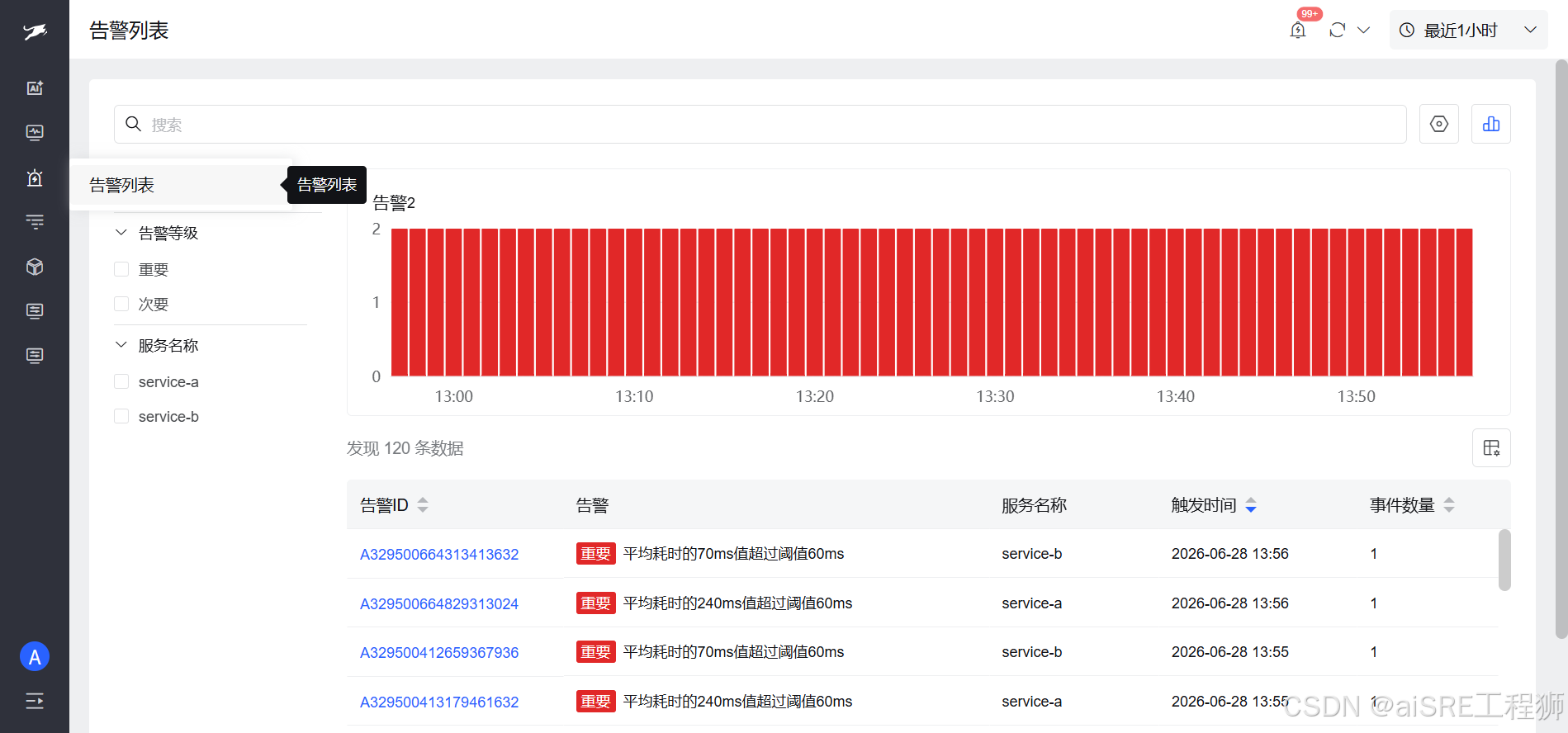

Figure 4-2 · Alert center → alert list: severity filters, alert frequency bar chart, alert ID/description/service/trigger time/event count[1]

Databuff alert list filters by critical/minor severity and service; bar chart shows alert frequency distribution; each alert gives readable text like "avg latency 240ms exceeds threshold 60ms", sharing the data foundation with global dashboard and AI inspection.

§4 Comparison summary: SkyWalking has finer alert rule engine and Layer dimensions with more community config samples; Databuff alert list Chinese descriptions + frequency visualization are closer to on-call reading habits, and can link to AI intelligent inspection for natural-language follow-up.

§4 Feature comparison · Alerting

Dimension	SkyWalking	Databuff	Databuff advantage
Alert view	Active/other stats + Timeline brush selection	Alert list + frequency bar chart, severity distribution intuitive	On-call landing shows "which minute had most alerts"
Filter dimensions	Layer / Service / Instance / Endpoint / keywords	Critical/minor severity + service name — simple filters	Two-step filter for common on-call scenarios
Alert description	SLA, response-time threshold rule trigger messages	Plain-language "metric vs threshold" (e.g. 240ms > 60ms)	No need to reverse-engineer rule syntax — messages forwardable directly
Classification	Mesh / General Layer tabs	Aggregated by service + severity, event count column	Grouped by business service — matches SRE on-call habits
Intelligent linkage	AI Pipeline ML detection, separate from dashboards	Shares OTLP data with AI Q&A/intelligent inspection	Natural-language root-cause follow-up after alerts — no broken chain

◆ ◆ ◆

5AI Smart Q&A and Inspection

From "dashboard clicking" to "natural language questions" — Databuff's core differentiator.

9 SkyWalking · AI / Intelligence

SkyWalking

SkyWalking offers AI Pipeline and other ML detection capabilities, focused on anomaly detection models and pipeline configuration — a "in-platform ML module" path. Day-to-day troubleshooting still centers on Trace/Topology/Log dashboards; conversational Q&A is not the default interaction[3].

ML pipelines and metric anomaly detection
Mature alerting + event management
No built-in conversational APM main interface

10 Databuff · AI Platform Conversational Q&A

Databuff Demo

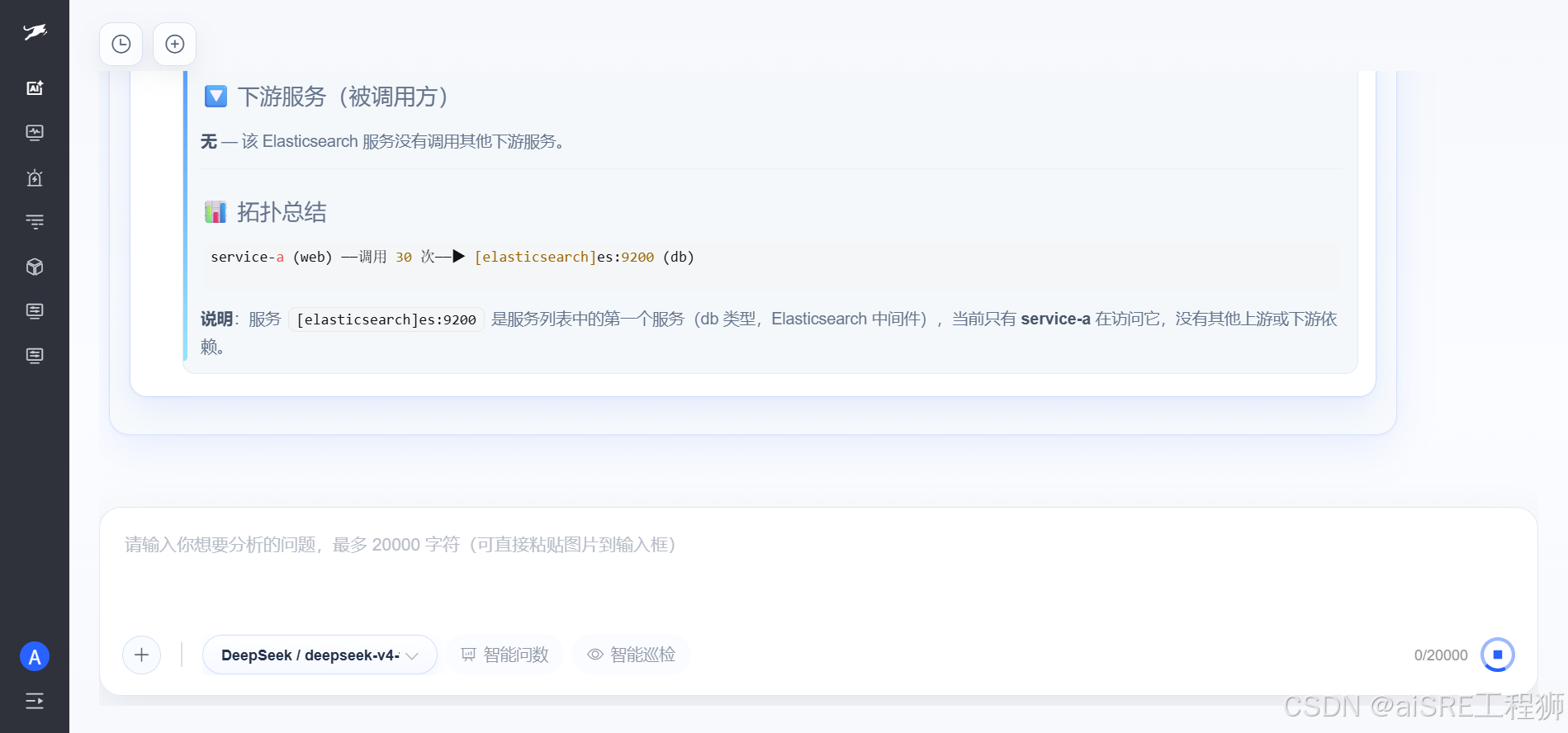

Figure 5-1 · AI platform → chat: ask "query upstream/downstream topology of the first service", returns upstream/downstream table and natural-language topology summary[1]

Databuff has built-in AI-native APM: natural-language questions query service lists, topology, metrics, and Traces; Agent answers from OTLP-ingested data. Supports intelligent inspection, MCP exposure, and external MCP integration — a unified entry for SRE and AI Agent workflows.

Q&A reads Trace/Metrics/Topology directly
One-click intelligent inspection for full-environment health checks
MCP / Skill extends IDE toolchains

§5 Comparison summary (biggest gap): SkyWalking excels at ML pipelines and traditional alerting; Databuff excels at conversational APM + MCP openness. If selection criteria include intelligent ops / agent monitoring, Databuff has a clear functional lead.

§5 Feature comparison · AI smart Q&A

Dimension	SkyWalking	Databuff	Databuff advantage
Intelligence path	AI Pipeline / ML anomaly detection pipelines	Conversational Q&A + intelligent inspection, built-in AI platform	Default interaction for 2026 agent ops — not an add-on module
Interaction	Dashboard clicking + rule configuration	Natural language questions, table + text summary responses	SRE/devs query APM in plain language — lower learning curve
Q&A scope	ML pipeline independently configured metrics	Service list, topology, metrics, Trace same-source queries	One question spans multiple modules — no switching five dashboards
Data consistency	ML module separate from Trace dashboards	Shares OTLP ingestion with APM — answers verifiable	AI conclusions match dashboard data — avoids "chat hallucination"
Extension integration	Open API / plugin ecosystem	MCP Server exposure + bidirectional external MCP	Cursor/IDE Agents can call APM directly — DevOps chain connected

◆ ◆ ◆

6Full-Dimension Summary

Based on five chapters of live Demo experience — selection reference on architecture, UX, and intelligence (not scoring; focused on OTel unification and 2026 intelligent-ops needs).

§6 Full-dimension summary table

Dimension	SkyWalking	Databuff	Selection hint
Data ingestion	SkyWalking agents + OTLP/Mesh, etc.	OTLP 4317/4318 unified entry	Already on OTel → Databuff zero extra protocol
Deployment	OAP + UI + storage (more components)	Ingest + Doris + Web three components	Lightweight self-host → Databuff stack simpler
Service monitoring	Deepest metrics/Profiling	Service relationship graph landing + instance table	Deep Profiling → SW; fast troubleshooting → DB
Distributed tracing	Multi-dimensional search + Distribution scatter	Distribution chart → list → waterfall	Dual-write migration → DB OTLP same source
Topology	Fine RPM/latency on edges	Clear OTel middleware semantics	Parallel OTel validation → DB low comparison cost
Alerting	Mature Layer rules + Timeline	Chinese descriptions + frequency chart + AI linkage	Long rule history → SW; fast on-call reading → DB
AI / intelligence	AI Pipeline ML detection	Conversational Q&A + inspection + MCP	Agent ops → Databuff clearly ahead
UI language	Chinese supported (some English terms)	Native Chinese	Domestic teams — both work; DB more unified
Community & ecosystem	ASF top-level project, vast case library	Emerging OTel-native stack, MCP open	Deep SW footprint → OTLP parallel validation of DB

Summary: SkyWalking is a mature full-stack observability platform with deep Profiling, alert rules, and large-scale experience; Databuff is closer to 2026's "OTel unification + intelligent ops" with OTLP-native ingestion, three-component lightweight deployment, service-relationship/waterfall troubleshooting paths, readable alerts, and conversational APM. SkyWalking users should OTLP dual-write to the Demo for parallel comparison, then evaluate whether AI Q&A and a lightweight stack are worth adding incrementally.

◆ ◆ ◆
